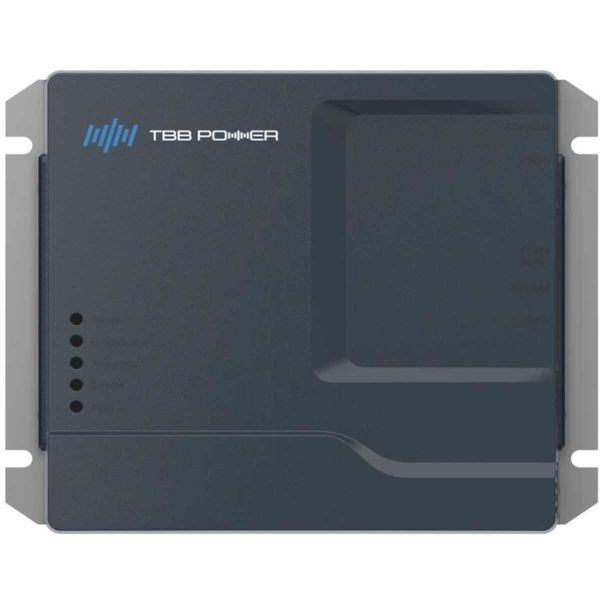

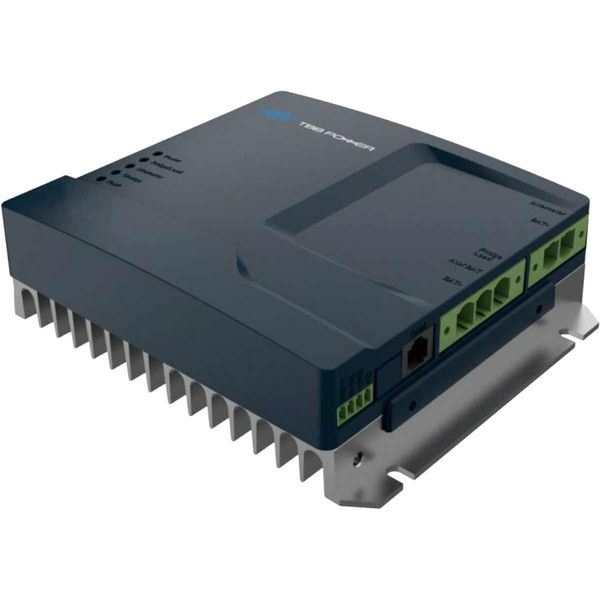

TBB DM series 60A charger is an in-vehicle charging solution which specified designed for on-board application such as RV, Marine, Utility Vehicle, Truck etc. Single output DM1260 is the booster charger only with charge current up to 60A for 12V systems. DM chargers are Euro-6 engine compatible, which is able to charge auxiliary battery properly and fully with much wider variable voltage output from engine. Alternator input voltage range (Default setting): 13.2-16V DC Automatic activation D+: Yes Absorption charge voltage (Default Setting): 14.6V DC Float charge voltage: 13.5V DC Load bypass current: N/A Total current of load and charging: 60A Maximum charging efficiency: 96% Maximum load bypass efficiency: N/A Temperature compensation: -3mV/?/cell Charge algorithm: TBB premium II multi stage Protection: Battery charger over temperature, Battery over temperature, Overload, Short circuit Back-charging function: Standard Communication: RS485, RJ45 connector Storage temperature: -40°C to 70°C Operating temperature: -40°C to 70°C Enclosure Battery Connection: Cable with connector Protection Rating: IP20 Dimensions: Height 181mm x Width 148mm x Depth 52mm Standards: Emission ECE 10R-06, EN61000-6-1, EN61000-6-3 Non-isolation design with max efficiency 96% Euro-6 engine (Smart alternator) compatible TBB Premium II multiple stages charging algorithm Multiple battery chemical for optional including lithium battery Built-in automatic temperature compensated charging Plug and Play for easy installation Natural cooling without fan Supports RS485 communication Protection against input/output over voltage, output over current, output short circuit, internal over temperature, battery over temperature, battery low temperature protect for LFP etc. Back-charging function IP Rating: IP20 Brand: TBB Power Voltage Description: 12V DC Height Description: 148mm Width: 181mm Depth: 52mm Weight: 1kg Application: Motorhome, Caravan, RV, Marine, Utility Vehicle, Truck Amps Description: 60A
