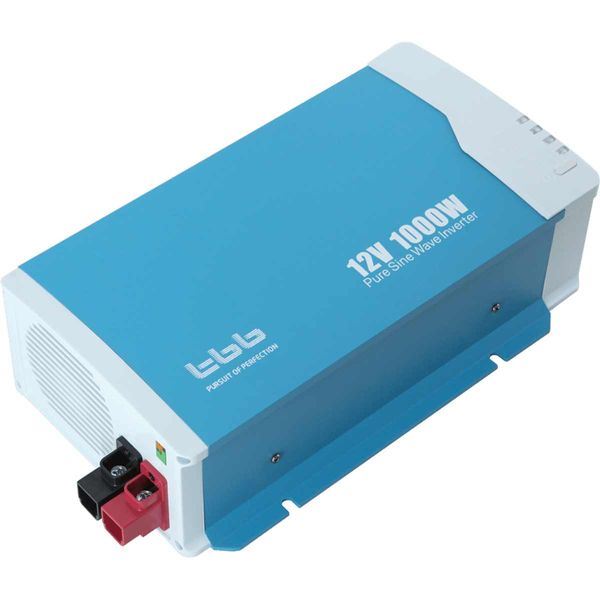

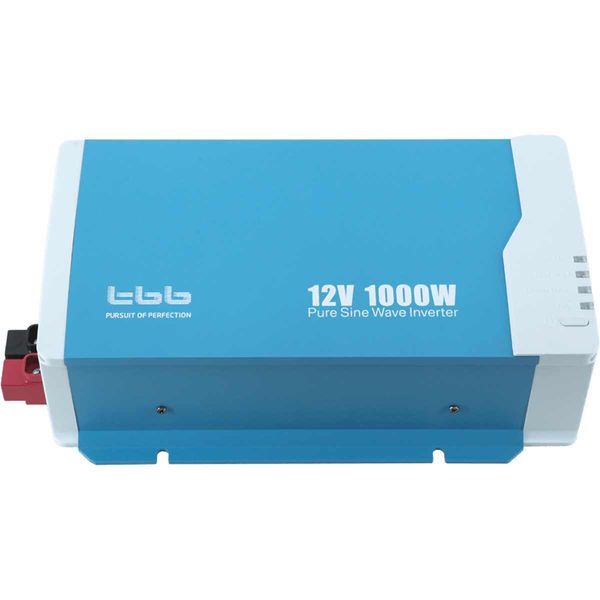

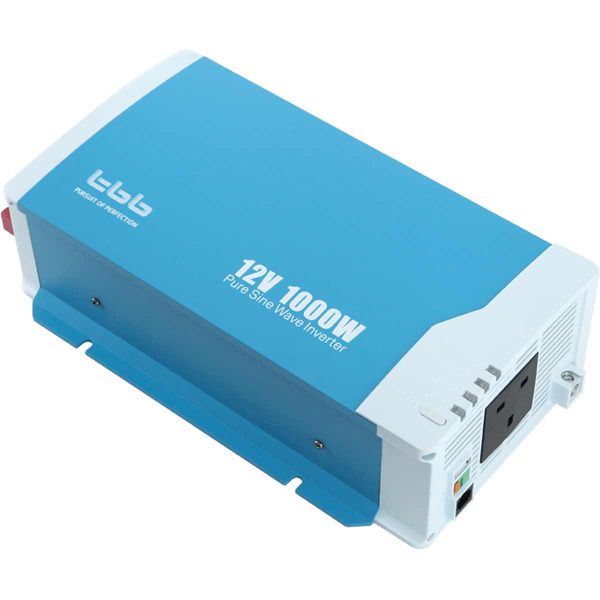

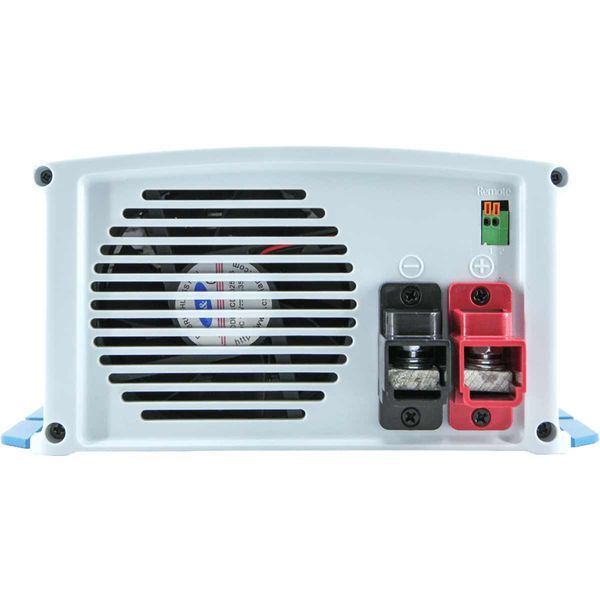

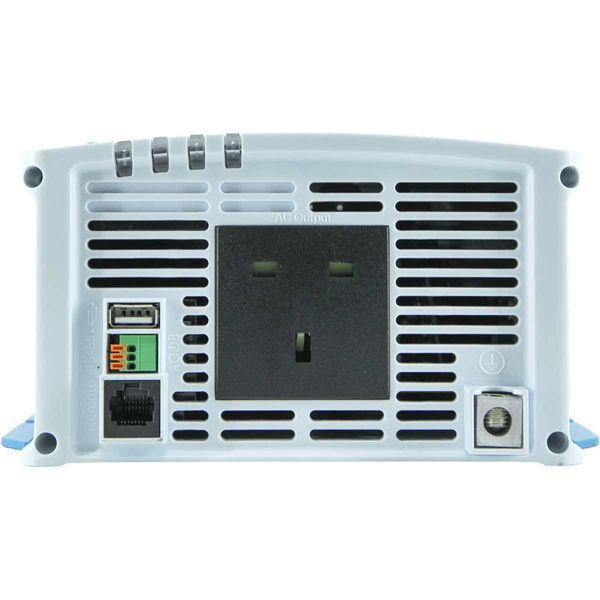

TBB Power eRAY IH1000L HF compact and efficient pure sinewave inverter to power your appliances from 12V battery. Designed to provide 230V AC from 12V leisure battery the IH 1000W inverter is rich in features. Pure sinewave 230V output enables compatibility with most appliances including those more sensitive and inductive loads. High efficiency of up to 90% ensures effective use of the battery energy. 200% surge capability (1 second) and built in protection ensures the IH range are easy to install and safe to use. Integrated LED lights display status of inverter and battery voltage along with fault indication. The 1000W model benefits from a remote control port (used with RIH remote) and USB output (2A) enabling the charging of mobile devices without having to use the 230V AC socket. This inverter also has a comms port (RS485) to allow connection and reporting to the TBB ecosystem. All products in the series feature a remote terminal which provides on/off via ignition or via separately installed switch if required. The new IH range are ideal for in vehicle use including leisure and commercial vehicles as well as marine. Please call for advice if you are ensure of the inverter rating required. Please Note: DC input cables are NOT included. Nominal input voltage: 12V DC Input voltage range: 10.5V to 16V DC No load current: <1.0A Current when power off: <3mA Continuous output power @ 35°C: 1000W Maximum output power (1 min): 1150W Surge power (1 Sec): 2000W Output voltage: 230V AC (+/-5%) Output frequency: 50Hz Output waveform: Pure Sinewave USB max output current: 2A Protection: Overload, short circuit, reverse polarity (internal fuse), over temperature Approvals: E mark certified Dimensions: 313mm x 187mm x 96mm Pure Sinewave output output power rating 1000W High frequency design making it compact and light weight 200% output surge capability High efficiency up to 90% Low power consumption Thermal and load controlled fan Built in USB charger (2A) Dry contact input and output Complete protection overload, short circuit, over temperature, Under/over voltage Remote control option IP Rating: IP20 Brand: TBB Power Voltage Description: 12V DC Height Description: 313mm Width: 187mm Depth: 96mm Weight: 2.4kg Wattage: 1000W Application: Power tool charging, Lighting, Charging laptops & mobile devices, Computers, Small kitchen applicances (eg toaster & travel kettle), Any loads <1000W
