AL-KO Click-Fix Steady Legs 1239365

60198 - AL-KO Click-Fix Steady Legs 1239365

The mechanical ClickFix steady legs ensure the vehicle has a firm and secure footing on all ground. The aluminium supports impress users with their high stability and load capacity as well as low weight. It is extremely easy and convenient to operate the ClickFix steady legs. The steady legs can be simply turned in an upward manner using the crank (notice: not included in scope of supply). They automatically engage there, in such a way that accidental foldout, such as while driving, is reliably prevented. Since departures can often be rather hectic, ClickFix steady legs feature an integrated safety mechanism, which means you can set off while the supports are folded down. The free pivoting mechanism folds the exposed supports forwards or backwards when driving off. This prevents damage to both the motorhome and steady legs. The supports can be mounted on any AL-KO frame or on the frame extensions.

• Robust - for firm and secure positioning
• Convenient and fast - half a revolution is enough to reach the support position
• Independent tensioning of the steady leg while winding up
• Safety mechanism when setting off with legs folded down
• Free pivoting mechanism
• Main components made of aluminium
• Problem-free mounting on AL-KO frames or frame extensions
• Load capacity static 1000 kg / dynamic 500 kg

• 1239362: 7.2 kg, Min. leg height D: 445 mm, Min. leg height C: 281 mm, Max. frame height B: 424 mm, Min. frame height A: 310 mm, Drive shaft length M: 200 mm
• 1239363: 7.3 kg, Min. leg height D: 464 mm, Min. leg height C: 297 mm, Max. frame height B: 440 mm, Min. frame height A: 320 mm, Drive shaft length M: 200 mm
• 1239364: 8.4 kg, Min. leg height D: 654 mm, Min. leg height C: 397 mm, Max. frame height B: 646 mm, Min. frame height A: 420 mm, Drive shaft length M: 200 mm
• 1239365: 8.9 kg, Min. leg height D: 744 mm, Min. leg height C: 446 mm, Max. frame height B: 710 mm, Min. frame height A: 460 mm, Drive shaft length M: 200 mm

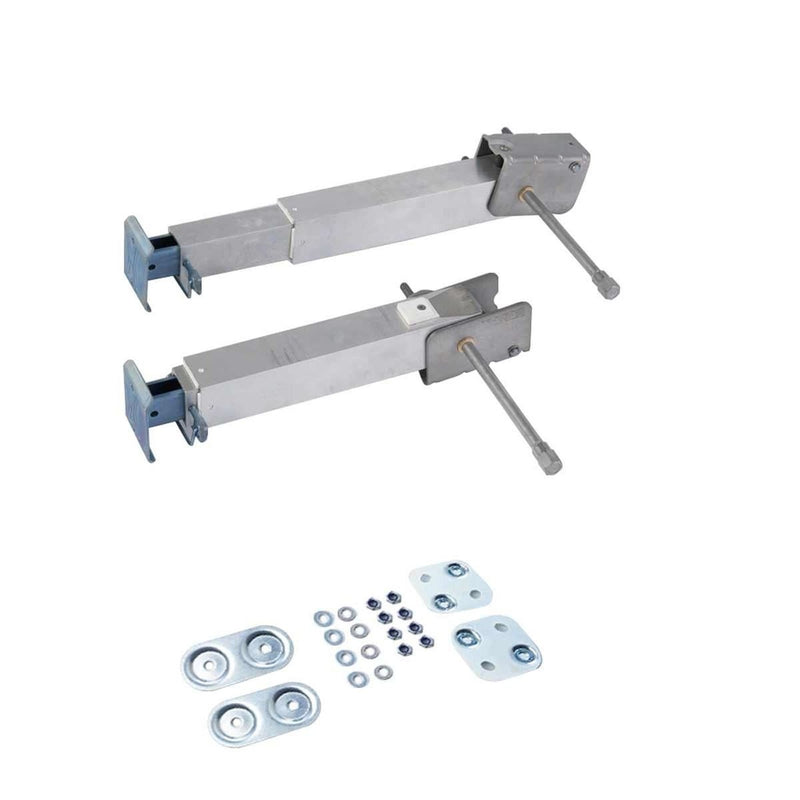

• Two steady legs
• Mounting material
• Assembly/installation instructions
• Crank must be ordered separately

AL-KO is a market leader in caravan and motorhome chassis technology, axles, stabilisers and safety systems. With decades of German engineering excellence, AL-KO components are trusted as original equipment by leading caravan and motorhome manufacturers across Europe.
