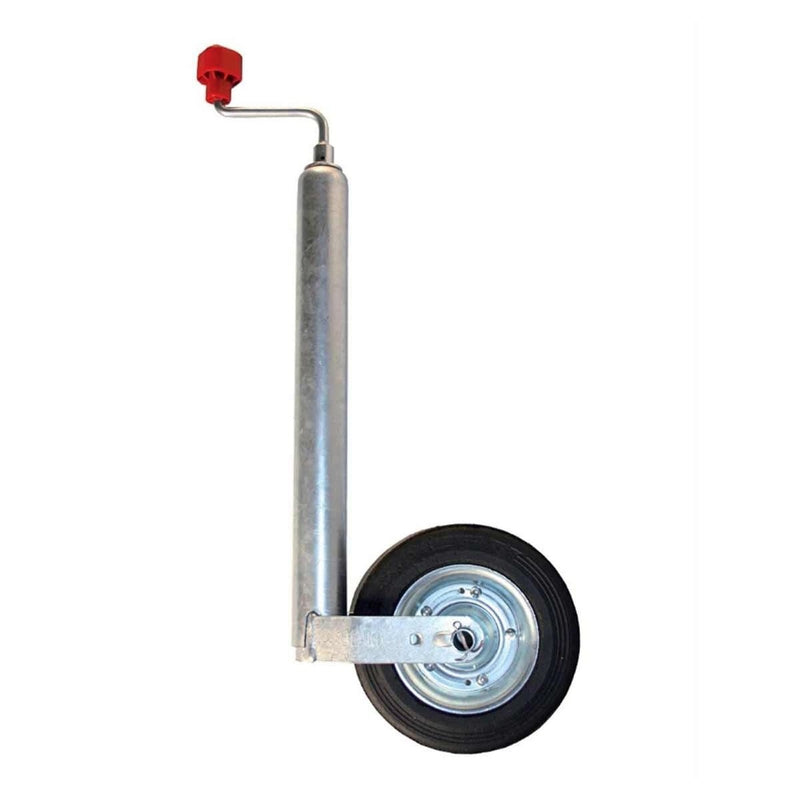

AL-KO Plus Jockey Wheel (48mm Shaft, 200 x 50mm Wheel, 150kg Max.)

ALK1222436 - AL-KO Plus Jockey Wheel (48mm Shaft, 200 x 50mm Wheel, 150kg Max.)

AL-KO provides jockey wheels for caravans in a variety of versions with load capacity of 300 kg, designed with high loads in mind and continuously easy to manoeuvre. Available in Plus or Premium product lines, finished to a high standard and corrosion-resistant due to hot-dip galvanising. Premium model features swing arm suspension, removable crank, and integrated wheel load indicator for measuring nose load.

• Hot-dip galvanised for corrosion protection
• Slide bearing wheel bearings
• Load capacity up to 300 kg (static)
• Easy to turn removable hand crank
• Self-replacement capability without special tools
• Available in solid rubber, soft rubber, or air-inflated designs
• Premium model includes integrated nose load scale
• Swing arm suspension for uneven ground
• Crowned wheel design suits hard and soft ground

• Article 1221695: Max nose load 180 kg (maneuvering), 300 kg (stationary), 230 mm diameter, 9.8 kg weight, solid rubber, Premium Profi
• Article 1222435: Max nose load 90 kg (maneuvering), 150 kg (stationary), 215 mm diameter, 5 kg weight, soft rubber, Plus
• Article 1222436: Max nose load 90 kg (maneuvering), 150 kg (stationary), 200 mm diameter, 5 kg weight, solid rubber, Plus
• Article 1222437: Max nose load 180 kg (maneuvering), 300 kg (stationary), 200 mm diameter, 7 kg weight, solid rubber, Plus
• Article 1222438: Max nose load 120 kg (maneuvering), 200 kg (stationary), 260 mm diameter, 5 kg weight, air-inflated, Plus

AL-KO is a market leader in caravan and motorhome chassis technology, axles, stabilisers and safety systems. With decades of German engineering excellence, AL-KO components are trusted as original equipment by leading caravan and motorhome manufacturers across Europe.
