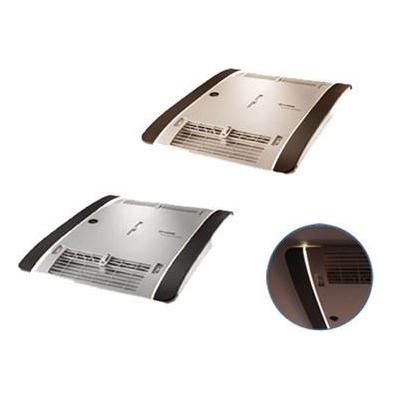

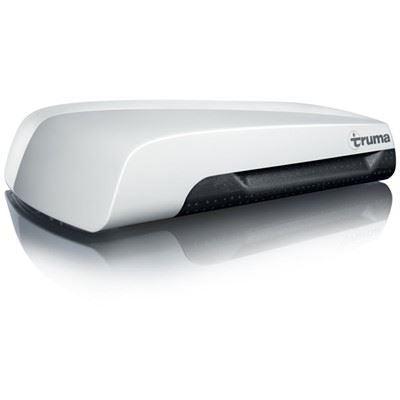

Truma Aventa Comfort Air Con & Diffuser

Aventa Comfort & Cream Diffuser & iNet System Package

One of the industry's most popular Air Conditioners. The Truma Aventa is perfect for vehicles measuring up to 7.5M in length. Fits in to a 40 x 40cm aperture. Height above vehicle when fitted is 24.8cm.

Has a cooling power of 2400W and a heat output of 1700W. Power consumption 4.2A. Operating voltage 230-240V, 50Hz. Works in conjunction with iNet box for complete remote operation.

Features:

• Powerful cooling exceptionally high air output of 2400w
• Maximum efficiency in heating and cooling operation
• Particularly lightweight
• Sleep function for quieter interior cooling and reduced exterior noise
• Retrofitting is very quick and easy
• Particularly flat for more freedom of movement inside your vehicle
• Air conditioning technology optimised for low–noise operation
• Honeycomb-shaped air filter system cleans the air inside the vehicle
• Dimmable LED ambient lighting

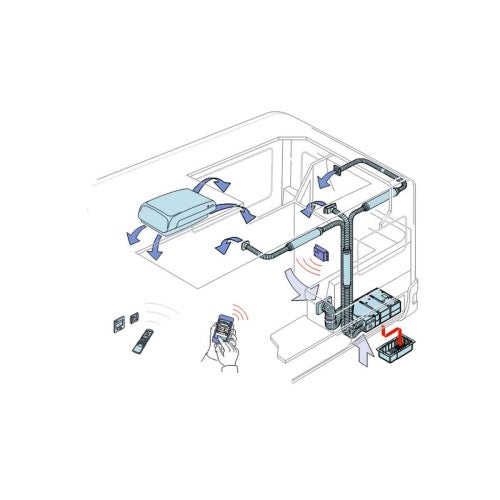

• The air flow can be split so that specific quantities are fed into the front and rear areas of the vehicle

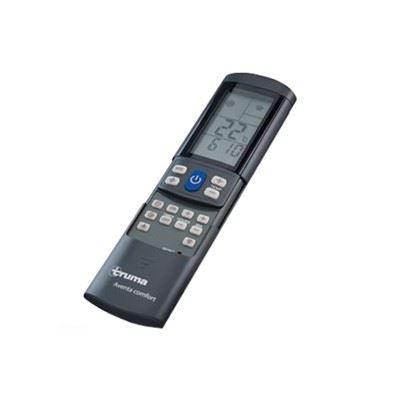

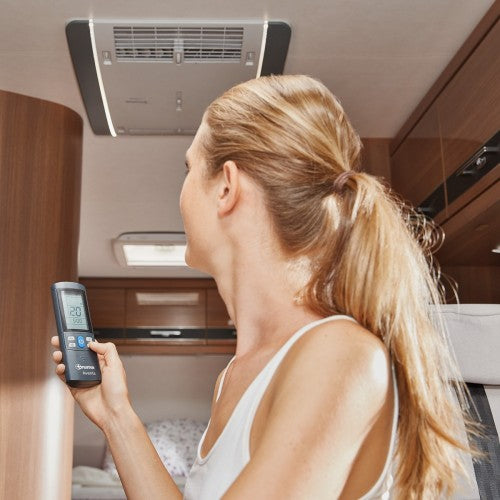

• Convenient remote control and programmable timer
• For vehicles up to approx. 7.5 m in length
• Can be operated with Truma iNet System (from serial no. 24084022 - 04/2013)

Technical Specification:

• Power Supply: 230 V – 240 V, 50 Hz
• Cooling Power (W): 2400
• Cooling Power (BTU): 8200
• Heat Output (W): 1700
• Power Consumption Cooling (230 V): 4.2 A
• Power Consumption Heating (230 V): 3.7 A
• Starting Current: 28 A (150 ms)
• Air Volume Flow: max. 400 m³/hr.
• Roof Cut-Out (W x H): 380 x 350 mm / 400 x 400 mm
• Dimensions External Unit (W x H x D): 1008 x 660 x 248 mm
• Dimensions Air Distributor (W x H x D): 670 x 523 x 46 mm
• Weight (plus installation materials): 33 kg

The iNet Box:

The iNet Box is a device that works alongside both the Truma Combi boilers and the Aventa Air conditioning range. It allows the user to control the temperature of the motorhome either by Bluetooth or via Text messaging from a smart phone.

Working with a combination of the heating system and air conditioner, it uses smart technology to work out the best way of getting the inside of your vehicle warmer or cooler.

Features:

• Remote control and monitoring of the Truma heating and air conditioning systems via smartphone / tablet
• Simple start-up via Truma App
• Future-proof thanks to update function
• Retrofittable for iNet-capable Truma appliances
• Communication via SMS or Bluetooth
• Update display and download of new firmware via the Truma App
• Registration of up to 20 mobile terminal devices with a Bluetooth connection
• Simultaneous control by up to four mobile terminal devices
• Requirements: A mini-SIM card (pre-paid or contract) with its own number is required for GSM communication (not included)

Technical Specification:

• Power Supply: 12 V / 24 V
• Average Power Consumption: 40 / 20 mA (12 V / 24 V)
• Sim Card Type: Mini-Sim
• Interfaces: TIN bus (2x TIN 1 replaceable, 1 x TIN 2) GSM, Bluetooth
• Bluetooth: Class 2
• Operating Temperature Range: - 30 °C to + 60 °C
• Weight (without accessories) Approx. 150g

Manufacturer SKU: 44090-51CMI
