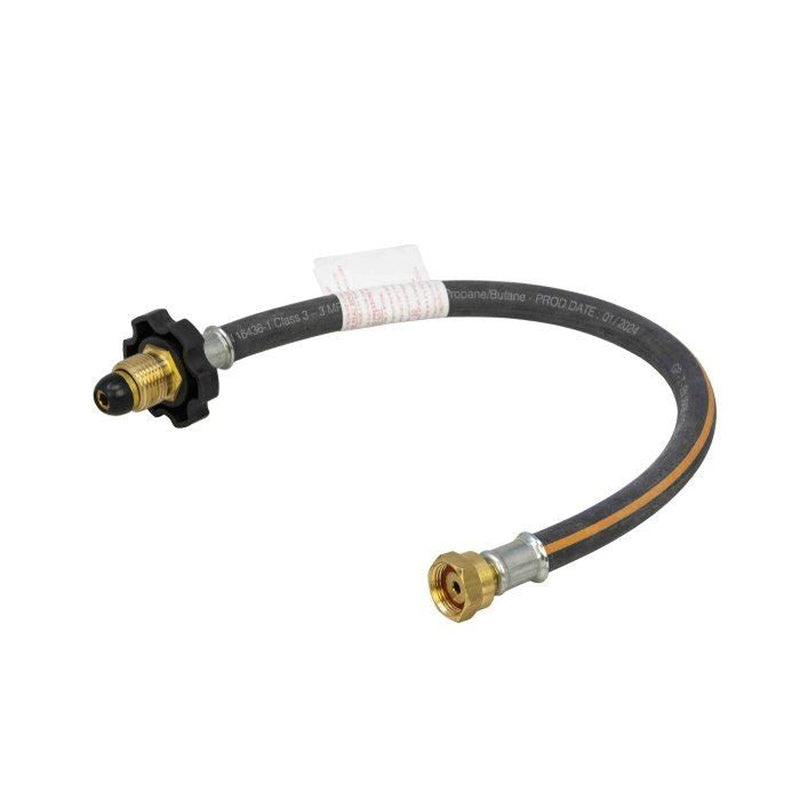

The 450mm Easy-Fit Handwheel Propane Gas Pigtail. Designed for seamless propane cylinder changes, this high-quality gas pigtail features NR POL x W20 fittings and a user-friendly handwheel mechanism. Approved by Calor Gas for use with Propane (LPG)
· Effortless Installation: The innovative handwheel design allows for quick and tool-free connection, making cylinder changes a breeze.
· Quick Cylinder Replacement: Easily replace used or empty gas cylinders by simply unscrewing and tightening the handwheel, no spanners required.
· Enhanced Excess Flow Protection: Features a built-in excess flow valve that automatically restricts the flow of gas if it exceeds safe levels, preventing accidents and ensuring operational safety.
· Robust Non-Return Functionality: Equipped with a non-return valve to prevent the backward flow of gas, enhancing system integrity and protecting against potential hazards.
· Durable Construction: Crafted from robust materials, this 450mm pigtail ensures long-lasting durability and reliable performance.
· Secure Connection: The NR POL x W20 fittings guarantee a safe, leak-free connection, providing peace of mind during use.
· User-Friendly Design: Perfect for both novice users and experienced caravaners, ensuring a hassle-free experience every time.
High pressure black hose to (and marked) EN 16436-1 Class 3. 6.3mm i.d., 16.3mm o.d., 30 bar working pressure, 90 bar burst pressure. A self adhesive advisory label is attached to every hose.
Specifications:
Braided: unbraided
Standard (Tested): EN 16436-1 Class 3 - Calor Gas Approved
Burst pressure: 90 bar
Colour: black with orange strip
Connection: NR Handwheel POL + 5/8” LH Nut x W20 Nut+Tail
Gas Type: propane
Inside Diameter: 6.3mm
Outside Diameter: 16.3mm
Length: 450mm
N/R or ST: NR (Non return)
Operating Pressure: 30 bar
Compatible Cylinders: Calor Gas 3.9Kg, 6Kg, 11Kg, 13Kg, 19Kg & 47Kg – Flow Gas 3.9Kg, 6Kg, 11Kg, 19Kg & 47Kg
Warranty: 5 years manufacturers under normal use
