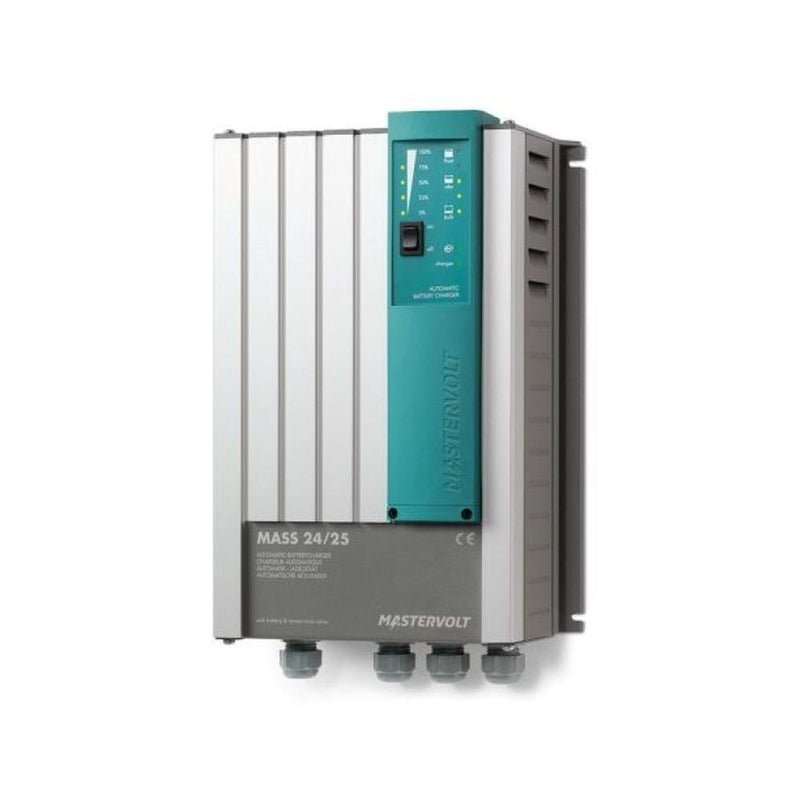

Mastervolt Mass Battery Charger with 230V Input (48V / 25A)

Mastervolt MASS 24/25-2 Battery Charger c/w M/BUS - 40020256

Part No: 40020256


The Mastervolt Mass battery charger is designed to deliver faultless performance in the toughest conditions, providing a stable power supply to every type of battery used in boating, even those that are flat. The unit it made from lightweight stainless steel, in an anodised aluminium casing. The internal components have been coated to prevent damage from damp or condensation, ensuring long life and less chance of failure. The Mass battery charger is also insensitive to electromagnetic effects of other devices you may have on board. They have been tested at full capacity without stopping and have a MTBF (Mean Time Between Failures) of 180,000 hours.
They have one main outlet to optimally charge a battery bank and guarantee a long lifespan for your batteries even with daily and intensive use. There is a second outlet which is used for maintenance charge of your starter battery. The 3-STEP+ charging memory ensures more power and a longer life for your batteries. Mass chargers feature a Current Control function which prevents the fuses being blown when the voltage drops. It is also MasterBus compatible, meaning they can be connected easily to a MasterBus system where you can operate and monitor all Mastervolt devices in one panel. The Mastervolt Mass series of battery chargers are designed to be GMDSS (Global Maritime Distress and Safety System) compatible so you can comply with SOLAS (Safety Of Life At Sea) guidelines.
General specifications
Nominal output voltage : 24 V
Total charge current: 25 A at 28.5 V
Number of battery outlets: 2
Charge current second output: 3 A
Battery bank size: 50-250 Ah
Nominal input voltage: 230 V (180-265 V), 50/60 Hz
Power supply mode: yes
Galvanisedanic isolation: yes
Display/read-out: LED display
Dimensions, hxwxd: 325 × 220 × 111mm (12.8 × 8.7 × 4.4 inch)
Weight: 3.3 kg (7.3 lb)
Compliance: CE, ABYC A-31, RRR, RMRS
Technical specifications
Charge characteristic: IUoUo, automatic 3-step+ for Gel/AGM/wet/Lithium Ion
Charge voltage Bulk: 28.5 V
Charge voltage Absorption: 28.5 V
Absorption time: 4 hours
Charge voltage Float (wet batteries): 26.5 V
Charge voltage Float (Gel/AGM batteries): 27.6 V
Temperature sensor: yes (included)
DC voltage compensation: yes
Power consumption (DC side): < 1 mA
Full load consumption (230 V AC): 880 W
Current Control function: yes, through MasterBus
Power factor control: > 0.95
Temperature range (ambient temp.): -25 °C to 80 °C, derating > 40 °C (-13 °F to 176 °F)
Cooling: vario fan
Protection degree: IP23
Protections: over temperature, over load, short circuit, high/low battery voltage
MasterBus compatible: yes
Charger Status Interface (alarm contact): yes

Brand - Mastervolt
Voltage - 24V DC
Amps - 25A
Height - 325mm (12.8")
Width - 220mm (8.7")
Depth - 111mm (4.4")
Weight - 3.3 kg (7.3 lb)
Temperature Range - Ambient Temperature: -25 °C to 80 °C, derating > 40 °C (-13 °F to 176 °F)
