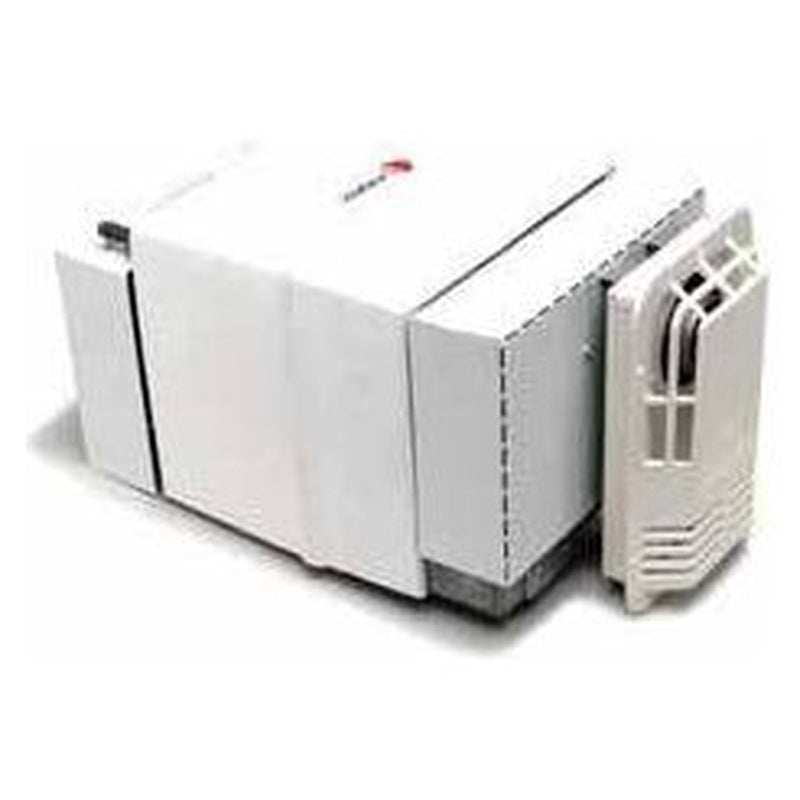

High capacity Malaga E water storage heater has the additional benefit of a 750 watt electric heating element, providing a quick and efficient supply of hot water for showering and washing in touring and motor caravans. The heater may also be installed in boats used exclusively on inland waterways i.e. Class 1 & 2 and subject to finding a satisfactory mounting position. When used with the adapter plate the Malaga makes an excellent replacement for the Carver Cascade originally fitted too many caravans as well its far east copy the Henry Water Heater. Large 13 litre capacity for longer washing and showering facilities Efficient gas burner for faster warm up 750W element on Malaga E use on its own or with the gas burner for even faster hot water Small flue terminal neat appearance outside the caravan Safe combustion products are completely sealed from the caravan interior Easy to fit and service all controls accessible at the rear of the unit Electronic control turns on the heater at the flick of a switch and supervises burner operation Automatic resettable overheat cut out Compact dimension more room to route pipework and ducting where necessary Henry Water Heater replacement when flue adapter plate used
Specification
Dimensions (HxWxD: 250 x 325 x 445mm
Weight (Empty): 9.3Kg
Tank capacity: 13Ltr
Water temperature thermostat setting: 70C
Overheat thermostat setting: 90C
Water Supply
Must not be connected to mains water supply microswitched or pressure switched only
Pressure relief valve setting: 3bar
Maximum working pressure: 2bar
Maximum working supply pressure: 1.9bar
Gas Supply
Heat input: 1.15Kw 84g/h
Pressure settings: propane 37mbar butane 28mbar mixtures 30mbar
Injector: Bray 960/40
Electric supply: 12v DC
Gas connection: 8mm OD
Mains electric supply: 220/240v AC - 50Hz - Fused 5A
