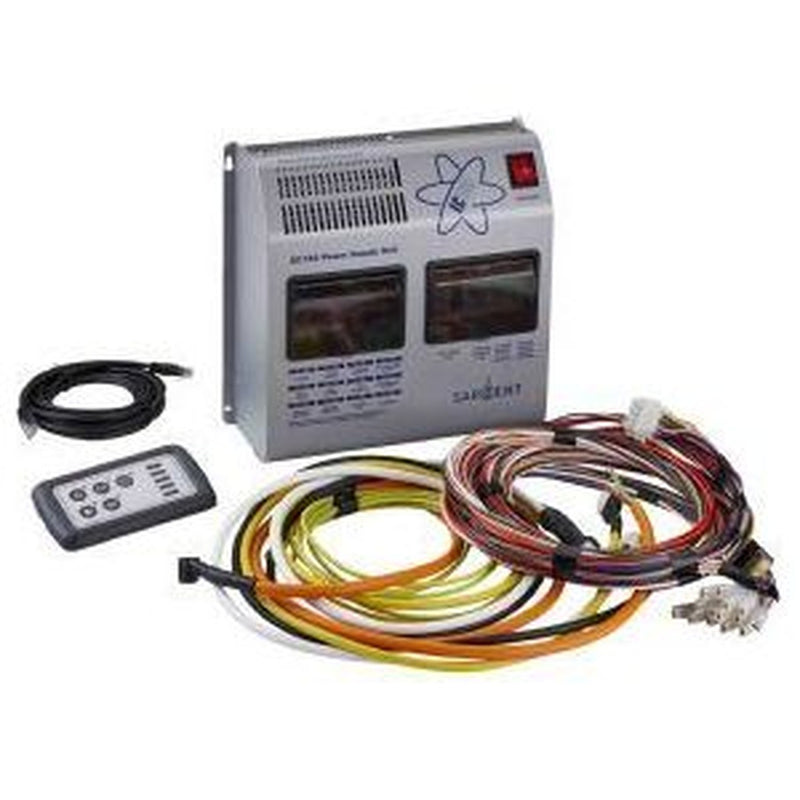

The EC155 / EC50 Electrical Kit is specifically designed for customers that are building their own motorhome or caravan conversion. If you have a one off build or are a small to medium manufacturer then this would be the perfect choice for your requirements. The kit contains a compact EC155 power supply unit and an EC50 control panel that is connected via a 5 metre length control lead. The DIY harness simply plugs into the EC155 unit and provides the available 230V and 12V inputs and outputs for you to terminate into. Integrated 12A Battery Charger Electronic Control Panel (EC50) RCD for earth leakage protection of 230V mains supply MCB's for overload protection of 230V mains supply Blade fuses for protection of 12V circuits Wiring harnesses for connection into vehicle accessories
Specification
Input: 230v - 0 to 12Amps + / - 10%
Output: 230v RCD protected, 3 x MCB outputs of 10, 10 and 6amp via 2 x 9-way connectors
Input: 12v 2 x 20amp battery inputs via a single 9-way connector
Output: 12v 20amp total output via 4 x 16amp switched channels protected by 12 fused outputs via a 12-way connector
Integrated charger: Input 220-240 Volts AC +/- 10%, Frequency 50 Hz +/- 6%, Current 3A max. DC Output 13.8v nominal, Current 12amps max (155 Watts).
IP rating: IP31
Operating temperature: 0 to 35C - PSU case temperature with full load 65C Max. Automatic shutdown and restart if overheated / overloaded
Dimensions(HxWxD): 260 x 273 x 110mm
Weight: 1Kg excluding cables and control panel
