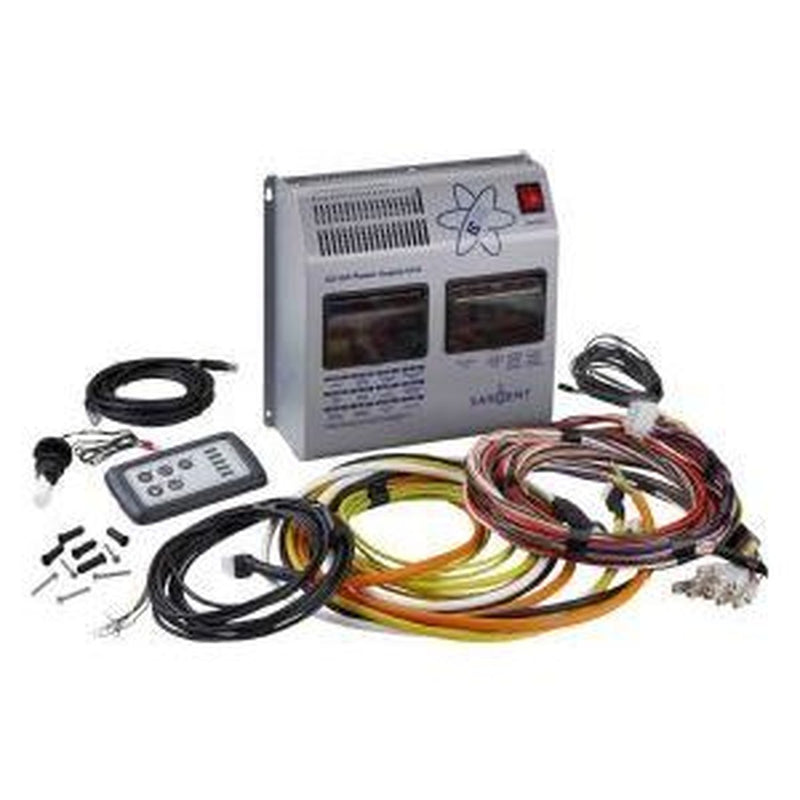

The EC155 / EC51 with connector kit is specifically designed for customers that are building their own motorhome or caravan conversion. If you have a one off build or are a small to medium manufacturer then this would be the perfect choice for your requirements. Kit contains : EC155 Power supply unit EC51 Control Panel Control lead 5m EC155 DIY 230v and 12v harness Waste water harness Fresh water harness Waste tank sensor Fresh tank sensor kit
Specification
Input: 230v - 0 to 12Amps + / - 10%
Output: 230v RCD protected, 3 x MCB outputs of 10, 10 and 6amp via 2 x 9-way connectors
Input: 12v 2 x 20amp battery inputs via a single 9-way connector
Output: 12v 20amp total output via 4 x 16amp switched channels protected by 12 fused outputs via a 12-way connector
Integrated charger: Input 220-240 Volts AC +/- 10%, Frequency 50 Hz +/- 6%, Current 3A max. DC Output 13.8v nominal, Current 12amps max (155 Watts)
Signal input: 1 x Engine running via PSU connector (4 x Fresh water level, 1 x Waste water level on EC51 version) Fresh & waste water negative sensed
Data IN / OUT: Data communication and power to Control Panel via 8 way RJ45 connector
IP rating: IP31
Operating temperature: 0 to 35C - PSU case temperature with full load 65C Max. Automatic shutdown and restart if overheated / overloaded
Dimensions(HxWxD): 260 x 273 x 110mm
Weight: 1Kg excluding cables and control panel
