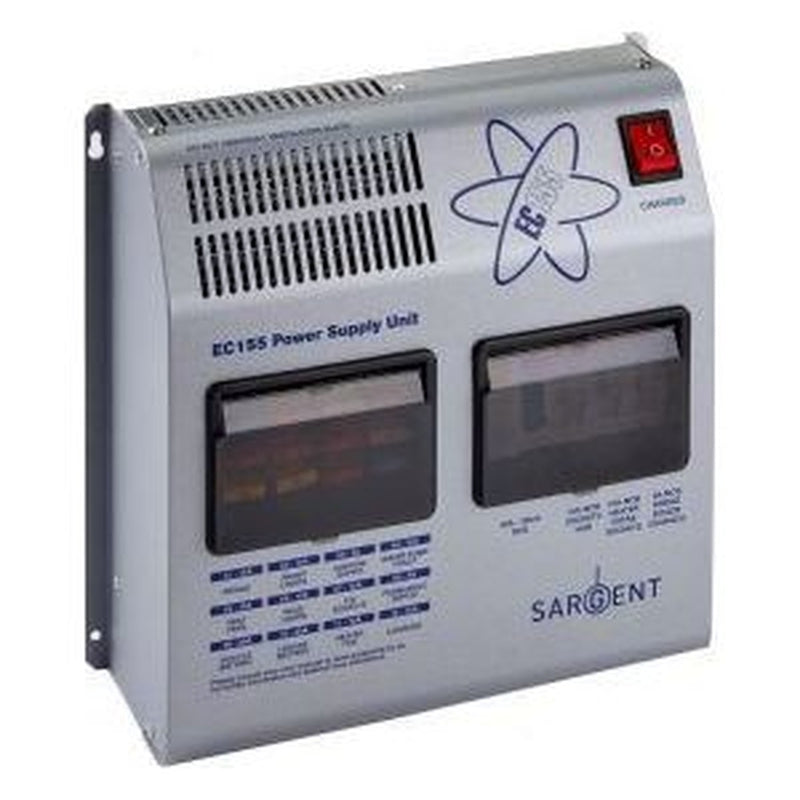

The EC155 is a power distribution and control system for electrical equipment within a leisure vehicle. The key component is the EC155 power supply unit (PSU), which is the hub of the system and provides connectivity to the ancillary components and the EC50 control panel (optional QQ016930) Integrated 12A Battery Charger Electronic Control Panel (EC50) RCD for earth leakage protection of 230V mains supply MCB's for overload protection of 230V mains supply Blade fuses for protection of 12V circuits Wiring harnesses for connection into vehicle accessories
Specification
Input: 230v - 0 to 12Amps + / - 10%
Output: 230v RCD protected, 3 x MCB outputs of 10, 10 and 6amp via 2 x 9-way connectors
Input: 12v 2 x 20amp battery inputs via a single 9-way connector
Output: 12v 20amp total output via 4 x 16amp switched channels protected by 12 fused outputs via a 12-way connector
Integrated charger: Input 220-240 Volts AC +/- 10%, Frequency 50 Hz +/- 6%, Current 3A max. DC Output 13.8v nominal, Current 12amps max (155 Watts).
IP rating: IP31
Operating temperature: 0 to 35C - PSU case temperature with full load 65C Max. Automatic shutdown and restart if overheated / overloaded
Dimensions(HxWxD): 260 x 273 x 110mm
Weight: 1Kg
