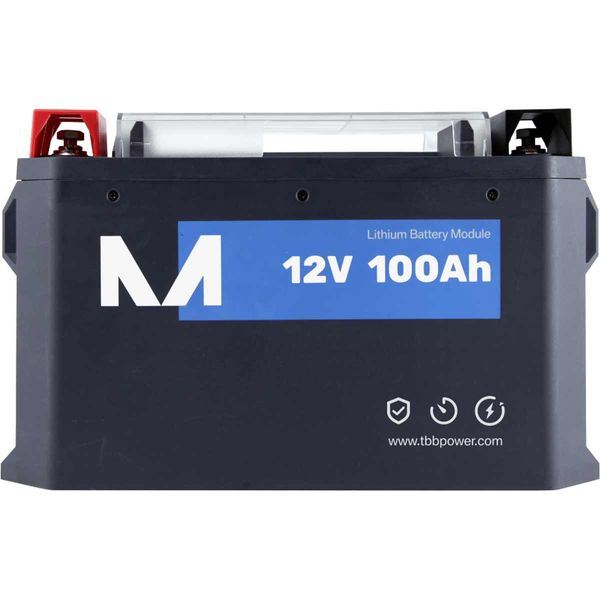

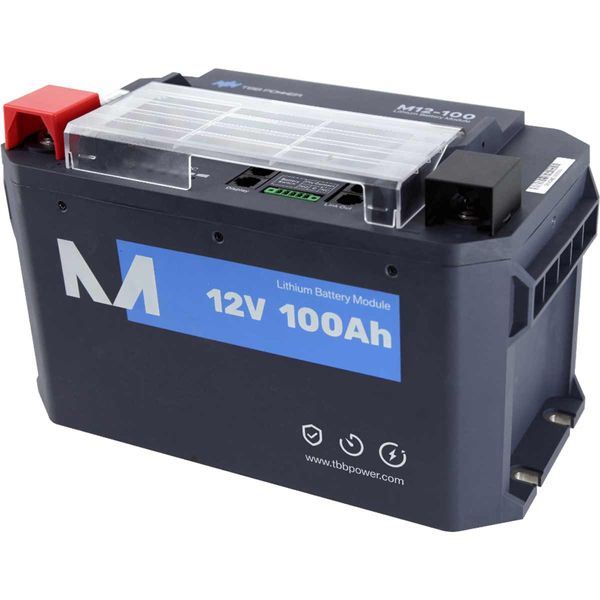

TBB Power 12V 100Ah lithium module is designed for in vehicle applications. The M12 series is a lithium iron phosphate battery with high continuous discharge current and one of the most feature rich lithium modules available on the market. The M12-100/H supports a high continuous discharge current of 150A which makes it perfect to handle heavy duty appliances like air-compressors or coffee machines. Using LiFePO4 cells, each module provides 1280 Watt Hour (WH) of energy with capability to parallel up to 8 units delivering a total of 10240wh of energy storage if required. Each module weighs just under 12kg which makes them far lighter than a conventional AGM battery bank. 1.5C charging and discharging capability even under parallel configuration ensures the lithium modules can be fast charged and provide high discharge current to the inverter (1500W for every lithium module installed). The integrated shunt provides real time state of charge (SOC). As an example the Kinergier Mobile CM3.0L with integrated 180A charger can fully charge 4 modules (5120Wh) in a 150 minutes. CAN connection between each lithium module ensures safe, efficient and intelligent monitoring so maximising charge rates and life cycle this allows 100% depth of discharge (DOD) without compromising battery and system life. Nominal Voltage: 12V DC Nominal capacity: 100AH Charging voltage @ 25°C: 14.2V Max. Charging current @ 25°C: 100A per module (50A Recommended) Discharge cut off voltage @ 25°C: 11.2V Max. discharge current @ 25°C: 100A Continuous (150A for 30 Minutes) Continuous discharge current @ 25°C: 100A Operating temperature: Charging and discharging: 0°C to +55°C Cycle Life: > 3000 at 100% DOD @ 25°C Parallel capability: 8pcs (Call for advice on application >4) Certification: CE & UN38.3 Dimensions: 310mm x 165mm x 187mm High energy, high density lithium modules 1280Wh each Designed for easy deployment in-vehicle with included floor fixings Reinforced metal casing for mobile applications Supports high continuous discharge current of 150A for 12V Parallel capability up to 8 modules with additive discharge current (i.e 100A + 100A + 100A etc) Up to 1.5C charging capability Built-in heater element to support battery & can be charged at -20°C Optimised weight 11.5kg per module Partial state of charge tolerant (PSoC) Built-in BMS with automatic balancing & protection (against over-charging, over-discharging, over-temperature) Very low self discharge rate Exceptional voltage stability Bluetooth to support mobile app from MCK remote Long cycle life : >3000 at 100% DOD Built in active BMS with automatic balancing and protection Intelligent communication via CAN and RS485 Low total cost of ownership over cycle life Unit of Sale: Single Unit Brand: TBB Power Voltage Description: 12V DC Height Description: 187mm Width: 310mm Depth: 165mm Weight: 11.5kg Application: Utility vehicles, Telecom service vehicles, Catering vehicles, Mobile tyre fitting vehicles, Mobile pet grooming vehicles Capacity Description: 105 Ah Style: Lithium-Ion
