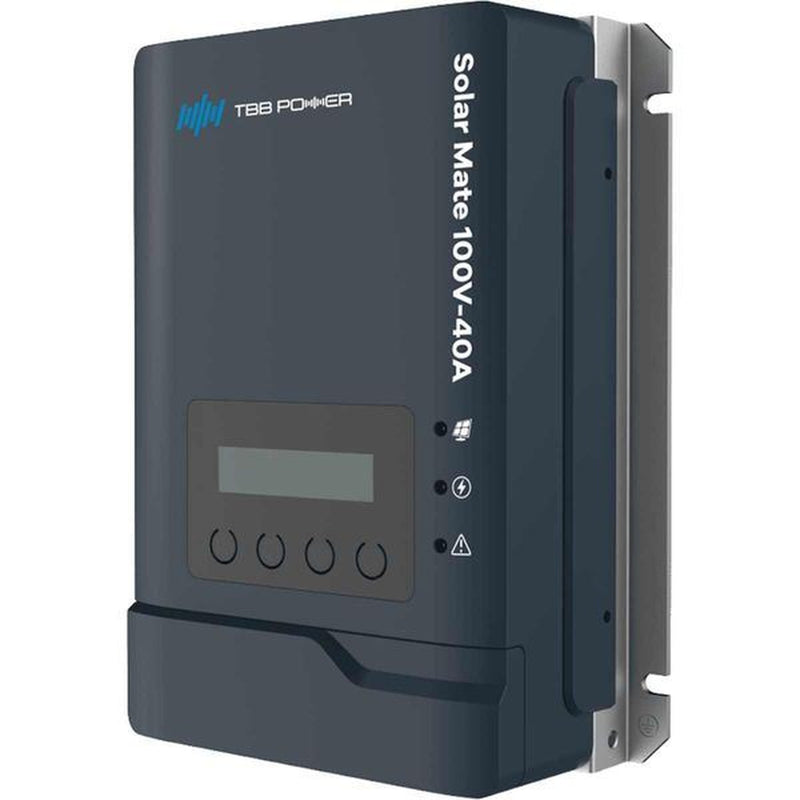

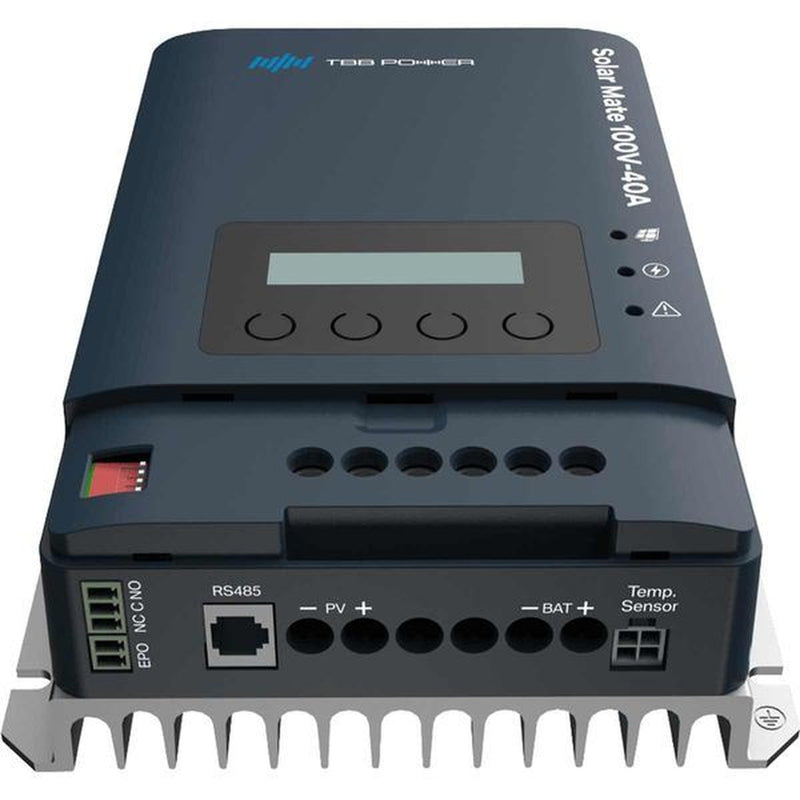

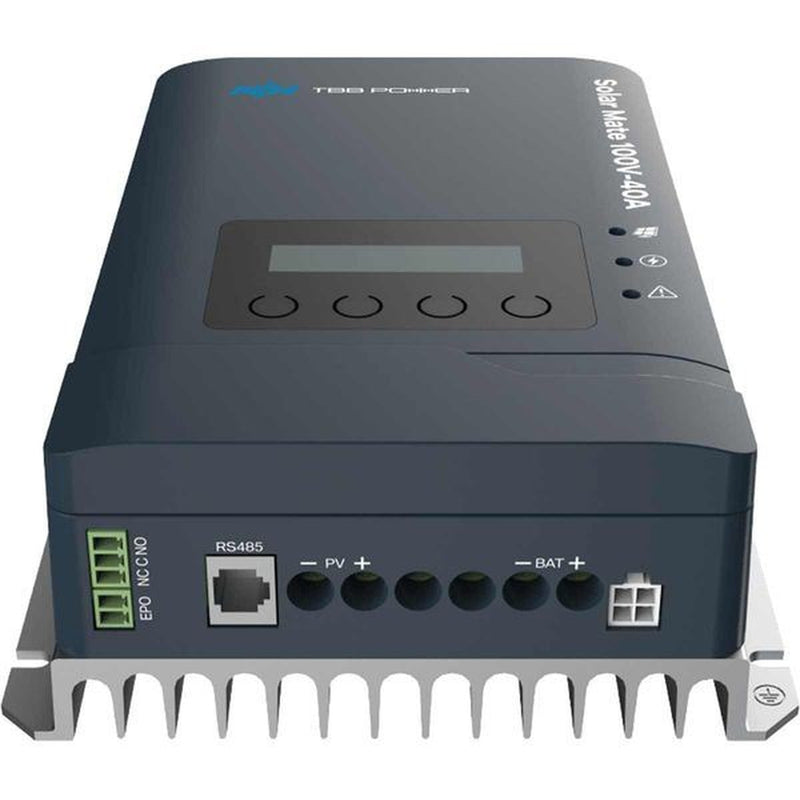

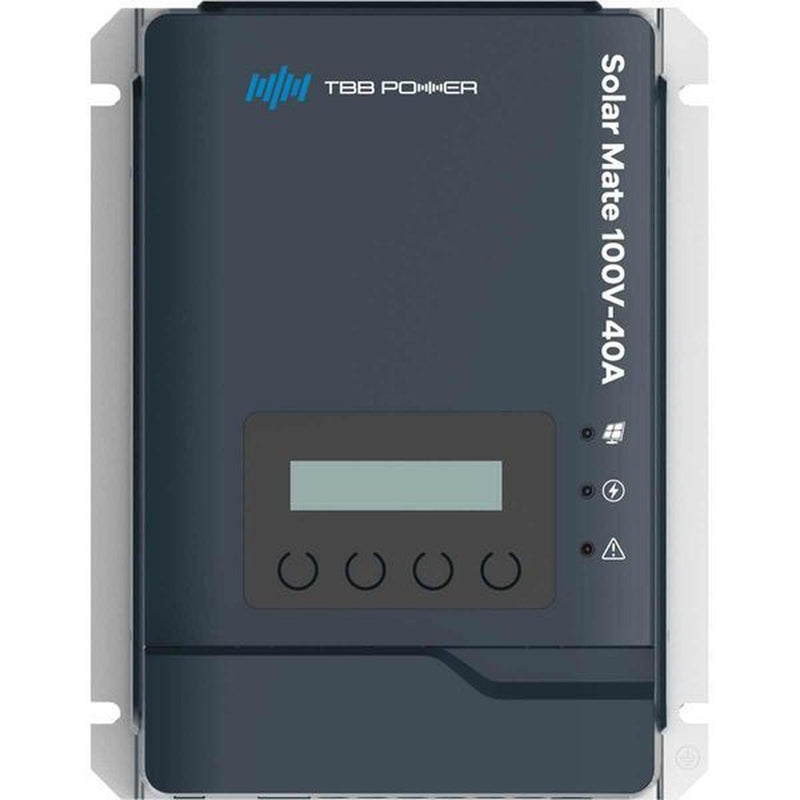

TBB Power SolarMate SP100-40 MPPT solar controller is a high efficiency 40A controller to maximise solar charging. Intelligent and easy to use 40A controller expertly designed with maximum efficiency of up to 99%. Complete with informative and easy to use Bluetooth App. Compatible with 12, 24 and 48V battery systems and PV arrays for optimal charging. MPPT solar controllers maximise the charging current to batteries by changing their power output to match the output of the solar panel. MPPT controllers therefore outperform conventional PWM solar controllers in terms of efficiency and actual charging current to a battery bank / power to a load. The SolarMate range has a wide solar input voltage range, allowing the use of series and parallel configurations in 12, 24 or even 48V to maximise solar input, providing flexibility in your choice of solar panel. The SolarMate SP100-40 can accept input voltage up to 100V. The maximum combined input solar power allowed for this controller is 588W for a 12V battery system, 1176W for a 24V system and 2352W for a 48V system. In particular, the SolarMate SP100-40 MPPT controller will significantly increase efficiency of a solar array or system where the solar panel voltage is much higher than the battery voltage (e.g. charging a 12V battery with a 36V solar panel). This controller also features advanced communication technology, which offers the user the opportunity to monitor and program parameters for the solar charge controller and load settings from the TBB SolarMate app or by PC update via the RS485 port. Multiple mounting holes for ease of installation. This solar controller comes complete with a two year warranty. Maximum solar panel voltage: 100V Maximum solar panel power based on battery bank voltage: 588W (12V) / 1176W (24V) / 2352W (48V) Battery Voltage: Fully automated operation 12V / 24V / 48V selection Communication port: RS485/RJ45 interface Grounding: negative common ground Current limiting function: 40A Self-consumption: <1mA (12V), <3mA (24V), <5mA (48V) Working temperature: -25°C to +60°C Size: 205mm x 160mm x 65mm Protection Rating: IP31 Multiple mounting holes for ease of installation Bluetooth App for ease of control and monitoring The most advanced MPPT technology to ensure high efficiency (98.2%) of your solar system Fully automated operation and auto 12/24/48V battery voltage selection 99% Max MPPT efficiency 3 Pairs of terminals (solar panel, battery, load) for wires up to 25mm Maximum solar panel input voltage 100V allows for flexible panel configuration Maximum solar panel power 588W (12V) / 1176W (24V) / 2352W (48V) Current limiting function (40A) allows higher solar panel input (up to 3 x max solar panel power) when compensating for winter conditions LED lights indicate the charging status and battery condition Temperature sensor for automatic compensation (-1mV/C/2V) Protection Category: IP31 Comprehensive electronic protection features Communication port: RS485/RJ45 interface to provide monitoring & basic programming of the controller. IP Rating: IP31 Brand: TBB Power Voltage Description: 12V, 24V & 48V DC (100V Maximum) Height Description: 205mm Width: 160mm Depth: 65mm Weight: 1.4kg Wattage: 588W (12V), 1176W (24V) & 2352W (48V) Application: Caravans and motorhomes, Boats, Off Grid sites & remote power applications such as CCTV & lighting, Glamping pods and tents, Industrial applications when used with the Energy Hub, Professional solutions as part of the Pro Energy Pack Amps Description: 40A
