Truma Aventa COMPACT Air Conditioning Unit For Caravans & Motorhomes
(Includes GREY Air Distributor) – 44200-01GM
The lightest and quietest roof-mounted camping air conditioner in its class. The Truma Aventa Compact is a roof-mounted air conditioning system with 1700W cooling output and low power consumption to cool your vehicle quickly and efficiently.
Scope of Delivery

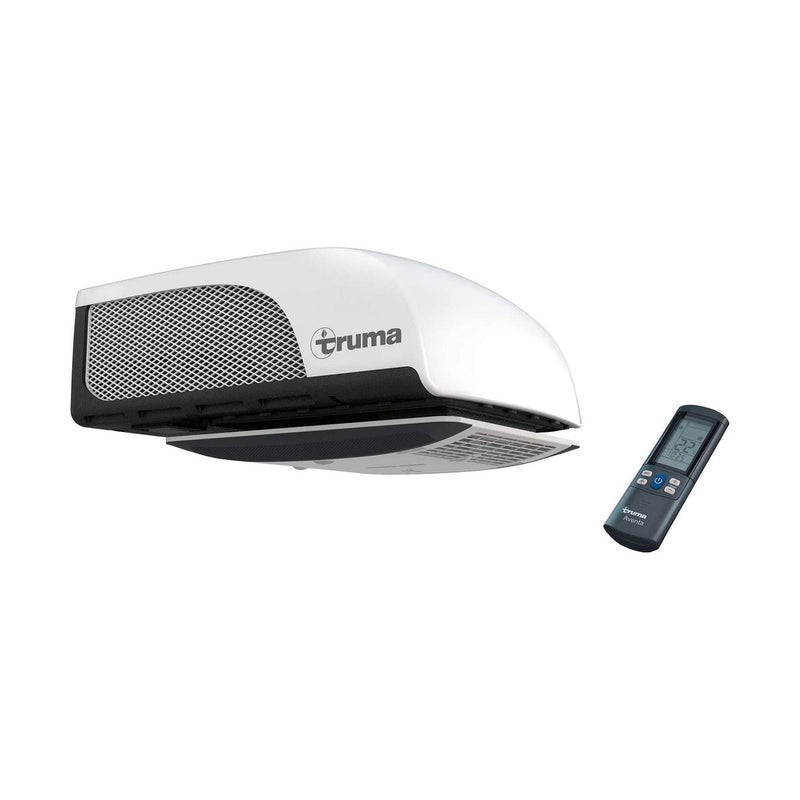

A/C Unit
GREY Air Diffuser (please advise if you require cream)
Standard Sealing Frame for caravans & motorhomes
2 x 10mm Roof thickness adaptor
Remote Control
3m TIN Data Cable
Install Instructions
Operating Instructions
Suitable for vehicles up to 6m in length and for use when using on-site hookup only.
The Truma Aventa compact offers a range of benefits beneath its compact housing. It is light, quiet and powerful. This is thanks to the use of advanced materials and the constant development of previous Truma roof-mounted air conditioners. Our development engineers were able to reduce the compressor noise to a minimum, for example. This makes the Aventa compact the quietest roof-mounted air conditioner on the market. Weight is saved by using expanded polypropylene for the housing. This means the Aventa compact is also the lightest air conditioner in its class.

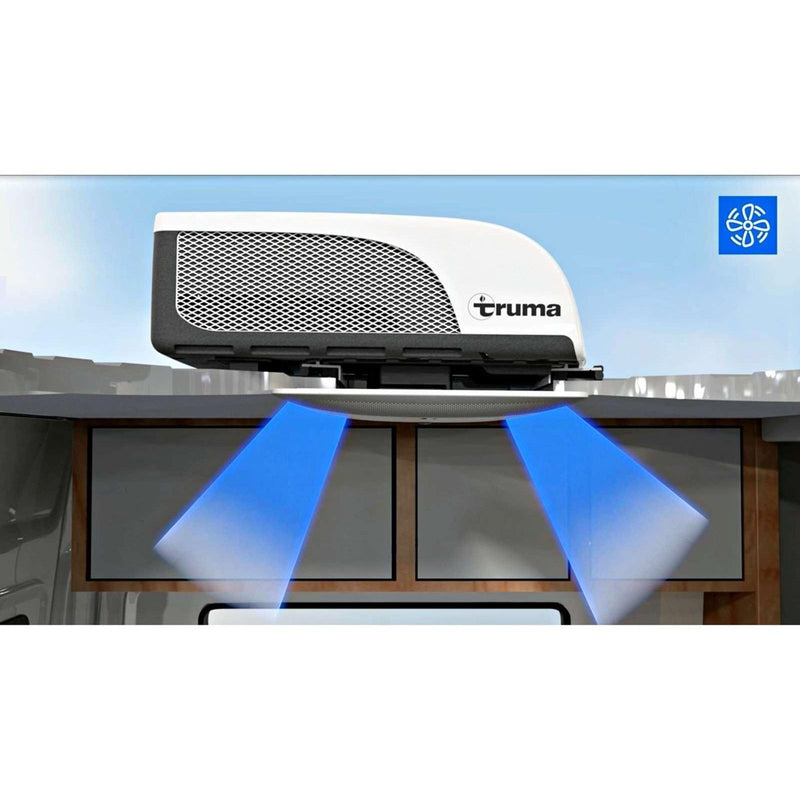

Its space-saving design makes the Aventa compact particularly well suited for vans. It can also fit on the roof alongside solar panels, satellite dishes or a roof box. But the roof-mounted air conditioner is perfect for caravans, motor homes and liners too.
Can produce a maximum temperature difference of 10°C under optimum conditions, such as when the vehicle is in shadow, is darkened, windows and skylights are closed and humidity is low.
Features
1700W cooling output
Fits on even small vehicle roofs
Extremely quiet running
Lightest roof-mounted air conditioner on the market
Suitable for vehicles up to 6m in length.
Cools faster than any other roof-mounted air conditioner
Convenient adjustment using remote control
Control air conditioner and ACC using the app (optional with Truma iNet Box)
Technical Specification
Power supply: 230 V – 240 V ~, 50 Hz
Power consumption, cooling: 2.8 A
Power consumption, heating: –
Start-up current: 20 A (150 ms)
Cooling power: 1700 W
Heating power: –
Volumetric air flow: max. 370 m³/h
Deployment range: +16 °C to +40 °C
Maximum incline during operation: 8%
Weight (without installation material): approx. 27.5 kg

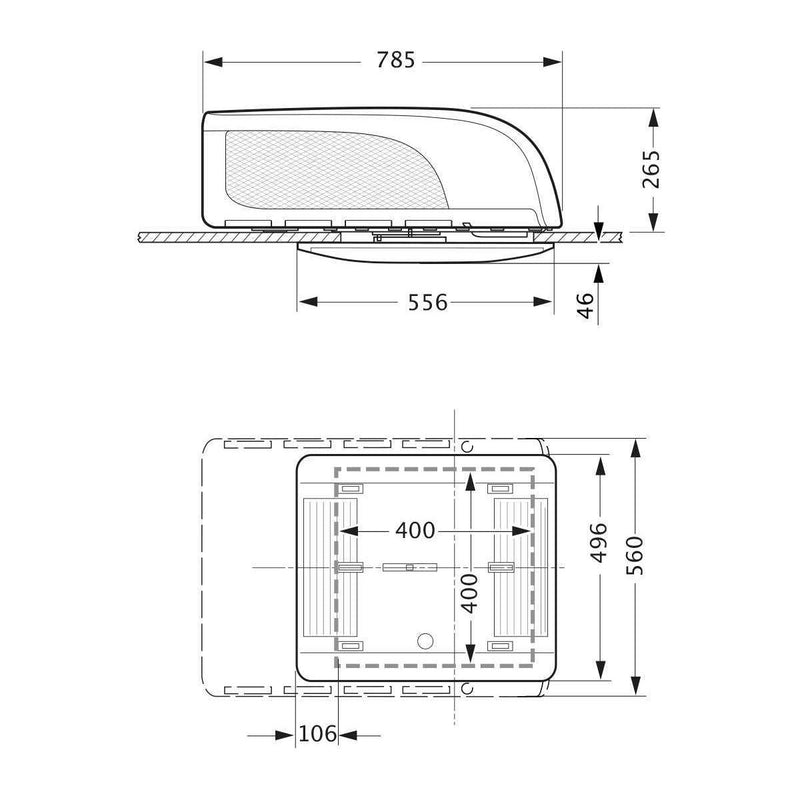

External unit dimensions (L x W x H): 785 x 560 x 265 mm
Inner air distributor dimensions (L x W x H): 556 x 496 x 46 mm (Air distributor small)
NO LED lights (Air distributor small)
Roof cut-out dimensions (L x W): 380 x 350 mm / 400 x 400 mm
More details about Truma Aventa Compact
The Air distributor small is designed to perfectly fit the Aventa compact. Like most Truma products, it offers a variety of individual adjustment options. You can adjust the openings to direct the cool air where you need it. Thanks to the compact and flat design of the air distributor, free movement in the vehicle is hardly affected at all. The roof-mounted air conditioner dries the circulated air while it is running. This helps create a pleasant interior climate, even with minor differences between inside and outside temperature.
The roof-mounted camping air conditioner can also be controlled with the digital Truma CP plus control panel (optional extra - not included).
It is easy to integrate into the iNet System and can be controlled via an app.
A specialist workshop can install the Truma Aventa Eco air conditioning system in place of a skylight. As the inside air distributor is very flat, it hardly obstructs free movement inside the vehicle.
