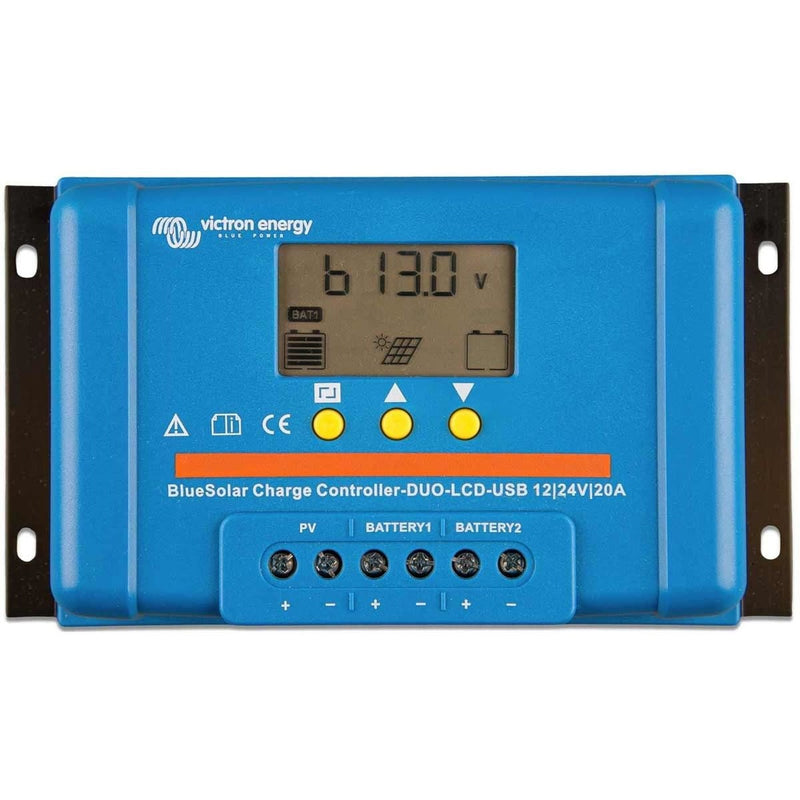

The Victron BlueSolar PWM DUO is a 20A solar charge controller that charges two separate batteries, such as the starter battery and the service battery of a boat or mobile home. It has an LCD display for status monitoring and set-up, and two 5V USB outputs.
The charge current ratio between the two batteries is programmable, with algorithms for AGM, GEL and flooded lead-acid batteries and for LiFePO4 batteries with an internal BMS. Charging is three-stage (bulk, absorption, float) and fully programmable, and a remote temperature sensor is included.
For 12V or 24V systems (self-sensing output, except LiFePO4) with FLA, AGM, GEL or LiFePO4 batteries. Maximum PV input: 28V / 55V DC.
| Charge Current | 20A |
| Battery Outputs | 2 |
| Max. PV Input | 28V / 55V DC |
| System Voltage | 12/24V self-sensing output (except LiFePO4) |

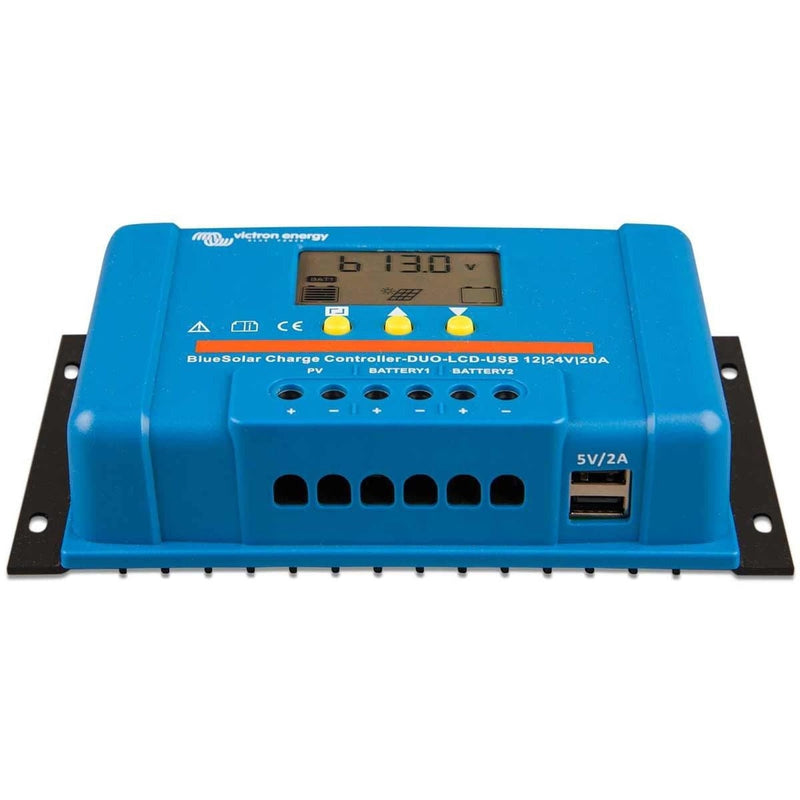

| USB Outputs | 2 x 5V, maximum 2A combined |
| Battery Types | FLA, AGM, GEL, LiFePO4 |
| Display | LCD |
| Temperature Sensor | Remote sensor included |
| Cable Conductor Cross Section | 16mm² (AWG6) |
| Protection | IP20 |
| Operating Temperature | -35°C to +55°C |
| Dimensions (H x W x D) | 101.5 x 184 x 47.1mm |
| Weight | 0.3kg |
| Approvals | CE, IEC 62109-1, EMC EN 61000-6-1, EN 61000-6-3, ISO 7637-2 |
| Country of Origin | Netherlands |
| Brand | Victron |
| Supplier Part Number | SCC010020060 |
| SKU | VC-SCC010020060-NOV |
