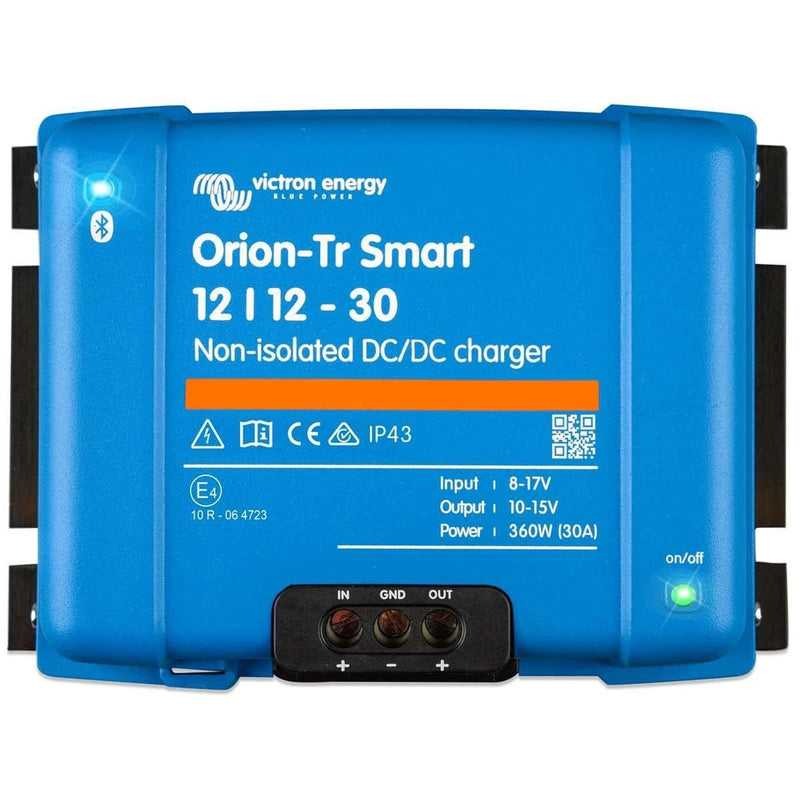

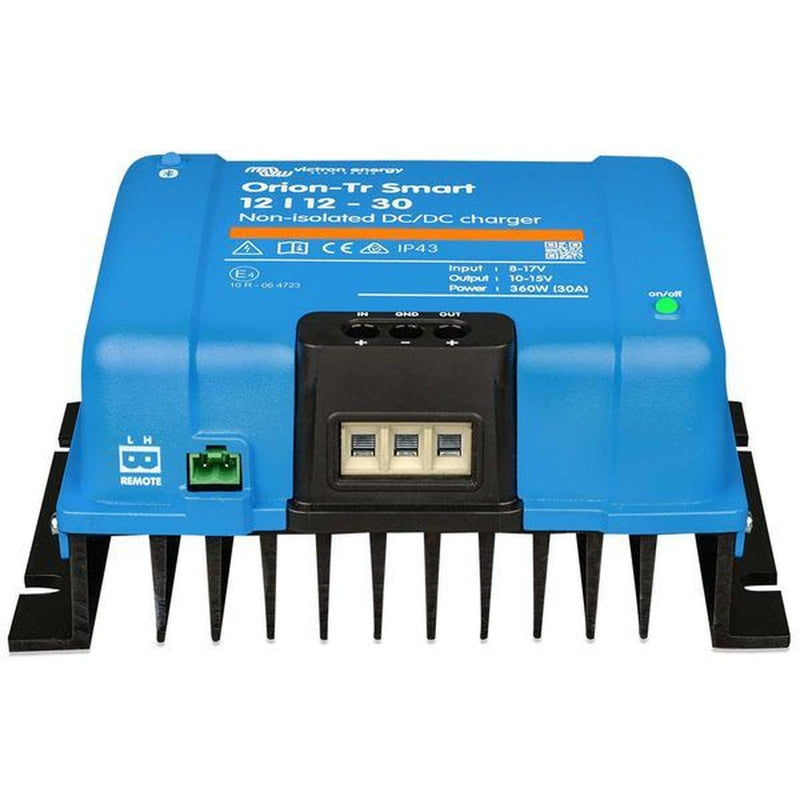

The Victron Orion-Tr Smart DC-DC charger ORI121236140 is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. DC-DC chargers are for use in dual battery systems on boats or in vehicles where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism. The Orion-Tr Smart charger can be used in 12V systems and is suitable for both lead acid and lithium batteries. This is the 360W model; unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C. - Bluetooth Smart enabled - Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available. Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product. - Fully programmable - Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. - Adaptive 3-stage charge algorithm: bulk absorption float. For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged. For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. - Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines) - The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery (see manual for details). - Remote on/off - A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). - Short circuit proof and can be paralleled to increase output current - An unlimited number of units can be connected in parallel. - High temperature protected - The output current will reduce at high ambient temperature. - IP43 protection - When installed with the screw terminals oriented downwards. - Screw terminals - No special tools needed for installation. - Input fuse (not replaceable) Bluetooth Smart enabled Adaptive 3-stage charge algorithm: bulk - absorption - float Suitable for use with a smart alternator Parallel to increase output current High temperature protected Cable Conductor Cross Section Description: 16mm² (AWG6) maximum Brand: Victron Voltage Description: Input Voltage Range: 10-17V DC, Output Voltage: 10-15V DC Height Description: 130mm (5-1/8") Width: 186mm (7.3") Length: 80mm (3.2") Weight: 1.8kg (3 lb) Wattage: 360W Approvals: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5 Operating Temperature: -20°C to +55°C Amps Description: Continuous output: 30A, Maximum output: 45A Country of Origin: Netherlands
