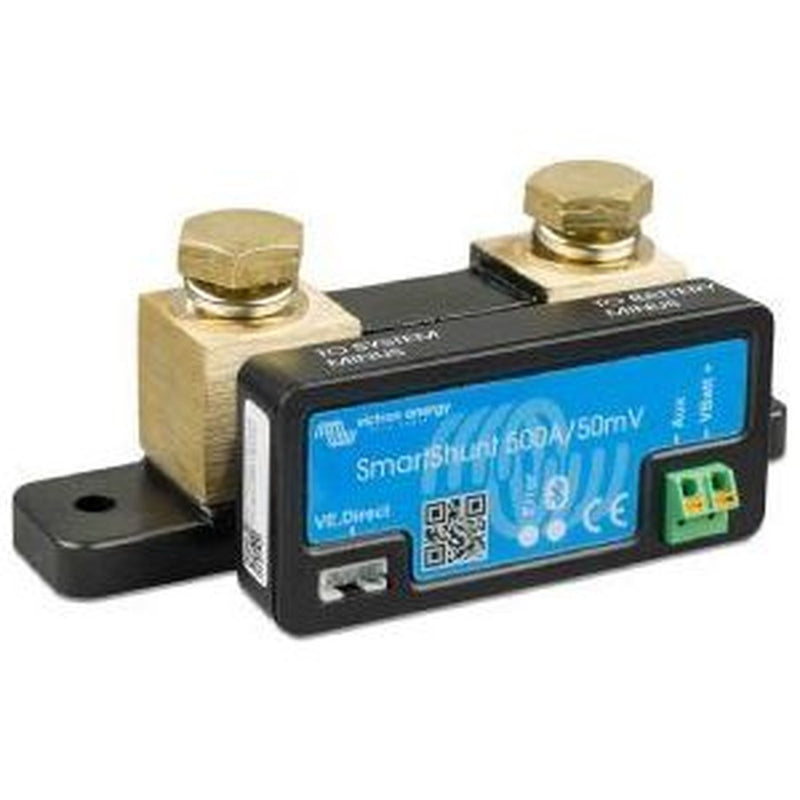

The Victron SmartShunt 500A/50mV is an all in one battery monitor, only without a display: your phone acts as the display. It connects via Bluetooth to the VictronConnect app on your phone or tablet, where you can read all the monitored battery parameters, such as the charge level, time to go and historical information.
It suits systems where battery monitoring is needed with less wiring and clutter. As well as Bluetooth, it has a VE.Direct port and a connection that can be used to monitor a second battery, for midpoint monitoring or for a temperature sensor. It stores 46 days of trend data.
For battery systems where you want battery monitoring with less wiring and clutter. It runs on a supply of 6.5 - 70 VDC. The Bluetooth range is 10-15 metres in most cases: the shunt and its cables reduce the range, and nearby conducting materials such as the metal chassis of a vehicle may reduce it further.
| Type | Battery monitor (shunt), no display |
| Shunt Rating | 500A / 50mV |
| Supply Voltage Range | 6.5 - 70 VDC |
| Current Draw | Under 1mA |
| Auxiliary Battery Input Range | 6.5 - 70 VDC |
| Battery Capacity | 1 - 9999 Ah |
| Operating Temperature | -40 to +50°C |
| Temperature Measurement Range | -20 to +50°C (with a temperature sensor connected) |
| Resolution | Current ± 0.01 A; voltage ± 0.01 V; amp hours ± 0.1 Ah; charge level ± 0.1 %; time to go ± 1 min |
| Accuracy | Current measurement ± 0.4 %; voltage measurement ± 0.3 % |
| Connectivity | Bluetooth; VE.Direct port |
| Stored Trends | 46 days |
| Shunt Connection Bolts | M10 |
| Protection Category | IP21 |
| Standards | Safety EN 60335-1; emission/immunity EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3; automotive EN 50498 |
| Cables Included | Two cables with 1 A fuse, for the '+' connection and the starter battery or midpoint connection |
| Dimensions (H x W x D) | 46 x 120 x 54mm |
| Part Number | SHU050150050 |
| SKU | A0010405-GRO |
